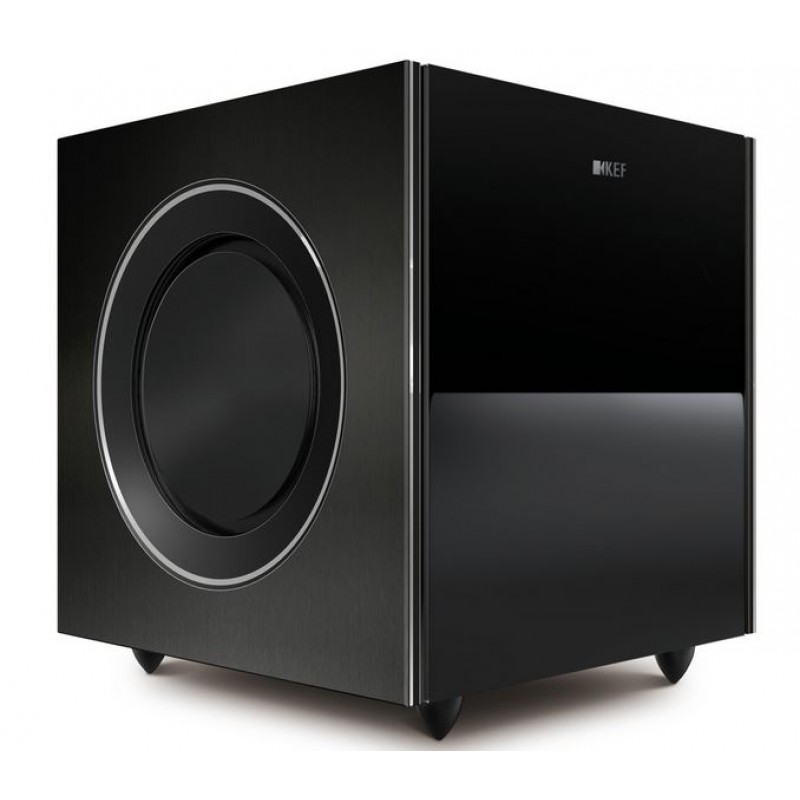

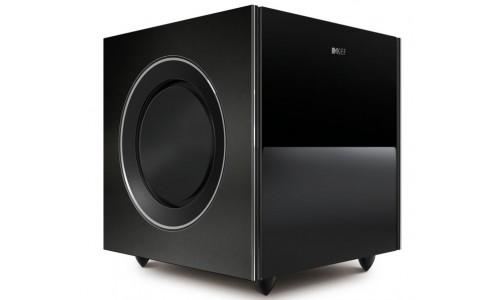

• KEF Reference 8B Sub

To experience the full impact of dramatic on-screen effects, bass definition and control are as important as extension. For power with accuracy, the Reference sub boasts two 500W Class D amps, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver, connected back-to-back in the heavily braced, acoustically inert cabinet. Only a truly great subwoofer could do justice to Reference standards of home theatre, and it does.


Model REFERENCE 8b

Design Force cancelled closed box

LF Drive unit 2 x 225 mm (9in.)

Frequency range at 90dB output in free-space mode (-6dB) 18Hz

Frequency response at 90dB output in free-space mode (±3dB) 24Hz

Amplifier 2 x 500 W Class D with switched mode power supply and DSP based control section

Maximum output

(peak sound pressure level at 1m 50Hz) 110dB

Low pass filter variable Variable frequency: 40Hz to 160Hz

Variable slope: 12dB/oct, 18dB/oct, 24dB/oct

LFE mode: 350Hz, 18dB/oct

Inputs RCA phono sockets

Analog XLR socket

Speaker level inputs

Link out RCA phono socket

Net internal volume 23L

Weight 35kg (77.2lbs.)

Dimensions (H x W x D) 398 x 365 x 429 mm

(15.7 x 14.4 x 16.8 in.)

Power requirements 100V - 120V / 220V - 240V ~50/60Hz

Power consumption 1000W

Finishes Deep Piano Black
