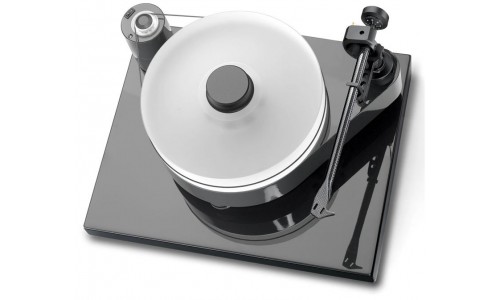

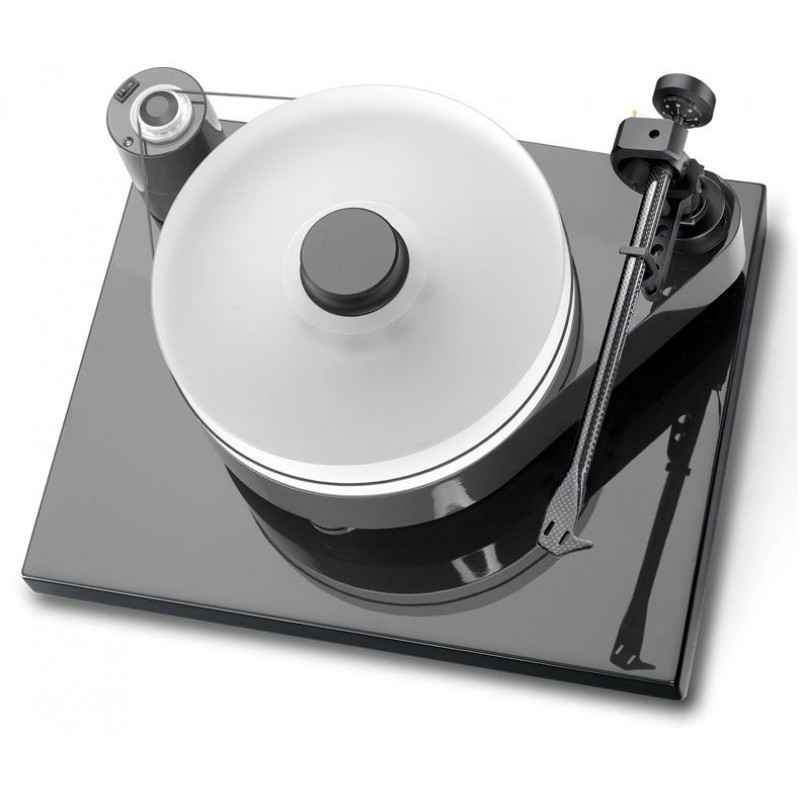

• Project RPM 10.1 Evolution

Through intensive listening tests we experienced that different materials transmit their own specific resonating fingerprint to the acoustic result in the playback process. With a specially developed measurement process, all acoustic effects on sound are now totally comprehensible. As a result of higher mass the resonance amplitude turns out to be lower – using combinations of different materials resonances become more diffuse and specific resonances less apparent. RPM 10.1 chassis is the result of our research. Chambers filled with sand and metal lead to high mass and dampens all resonances effectively. The platter is also very heavy. The advantage of high mass can result in higher rumble of the main bearing. To avoid the decline of sound, magnets make the platter almost float on the inverted main bearing with its ceramic ball and plate. All other design features are well known from the highly acclaimed RPM 9. Bass dynamics and overall calmness are clear advantages compared to all other turntables of the Pro-Ject family.

 Manual turntable with 10" precision tonearm

and equipment base Pro-Ject Ground it deluxe 3

 Turntable

• Chassis, motor housing and granulate filled equipment base Ground it deluxe piano-lacquered dark grey

• The equipment base Ground it deluxe rests on four individually height-adjustable magnetic field feet.

• A quiet running AC motor with a two-step pulley drives the platter's outside edge via a belt.

• The medium density fibre plinth stands on three height-adjustable Sorbothane®-damped aluminium cones.

• Granulate filled plinth guarantees constant damping. A supplied spirit level allows easy adjustment.

• The motor is mounted in a separate metal housing to eliminate vibration transmission.

• The resonance-optimised platter is a sandwich construction utilising an acrylic platter weighing 5,4Kg and a brass record puck.

• The magnet supported (amount of support adjustable), inverted bearing uses a stainless-steel axle carrying a ceramic ball on which the ceramic bearing plate runs.

• Central metal block optimises centre of gravity and damps main bearing.

• Connection to the phono input of the amplifier can be made with connecting cables of your taste through the gold plated phono sockets and earth screw. A standard cable is provided.

• External power supply avoids potential electro-mechanical interference.



Tonearm Pro-Ject 10cc Evolution

• The headshell and armtube are fashioned from a single piece of carbon-fibre.

• Conical armtube avoids standing wave reflections.

• Inverted tonearm bearing comprises four hardened stainless tips in ABEC7 spec ballraces.

• Rings provide very solid arm bearing housings. The massive outside ring is open to avoid resonances.

• Sorbothane®-damped counterweight effectively counteracts unwanted resonances.

• The counterweights supplied are suitable for cartridges weighing between 4 - 6g, 5 - 8g, 6 - 10g or 8 - 14g. An alternative counterweight for cartridges weighing between 15 - 20g or 16 - 22g is available as an accessory part.

• Counterweight shaft lowered to record level reduces cantilever forces and dynamic wow when playing warped records.

• Solid armbase permits accurate height adjustment of armtube and VTA (vertical tracing angle).

• Single-screw fixing of armtube allows rotation for easy adjustment of needle azimuth despite fixed headshell.

• Silicone-damped armlift can be adjusted to suit working height of the arm.

• The internal wiring consists of flexible high-purity copper from the headshell right through to the gold-plated phono sockets.


Technical data


Pro-Ject RPM 10.1 Evolution


Nominal speeds 33 / 45 r.p.m.

Dust cover Pro-Ject Cover it optional

Record weight yes

Motor in separate housing yes

RCA phono sockets yes

Sorbothane-damped aluminium cones yes

Central metal block yes

Granulate filled plinth yes

Ground it deluxe 3 supplied yes

Granulate filled equipment base yes

Tonearm Pro-Ject 10cc Evolution

Carbon-fibre headshell and armtube yes

Effective tonearm length 10 " (245mm)

Effective tonearm mass 8.5g

Overhang 16mm

Supplied counterweight cartridge weight 4 - 6g, 5 - 8g

cartridge weights 6 - 10g, 8 - 14g

Optional counterweight cartridge weight 15 - 20g, 16 - 22g

Downforce range 10 - 35mN

Speed variance ±0,5 %

Wow and flutter ±0,01 %

Signal to noise -73dB

Platter weight/diameter 5,4kg/300mm

Power supply type Mains-fed outboard power supply

220 - 240V, 50 cycles or 100 - 110V, 60 cycles

Output voltage 16V/500mA AC

Power consumption 2W

Dimensions 480 x 210 x 330mm

Dimension Ground it deluxe 500 x 65 x 400mm (including cones)

H without cones 45mm

Weight 14,5kg + motor unit 2kg

Weight Ground it deluxe 11,6kg

Dimensions (W x H x D)
